Automotive electrical diagnosis for conventional 12 V systems
A practical, measurement-first guide for careful DIYers who want to diagnose electrical problems with a multimeter, wiring information, and a repeatable plan.
By purchasing, you agree to the terms, refund policy, and personal-use license.
Free field reference

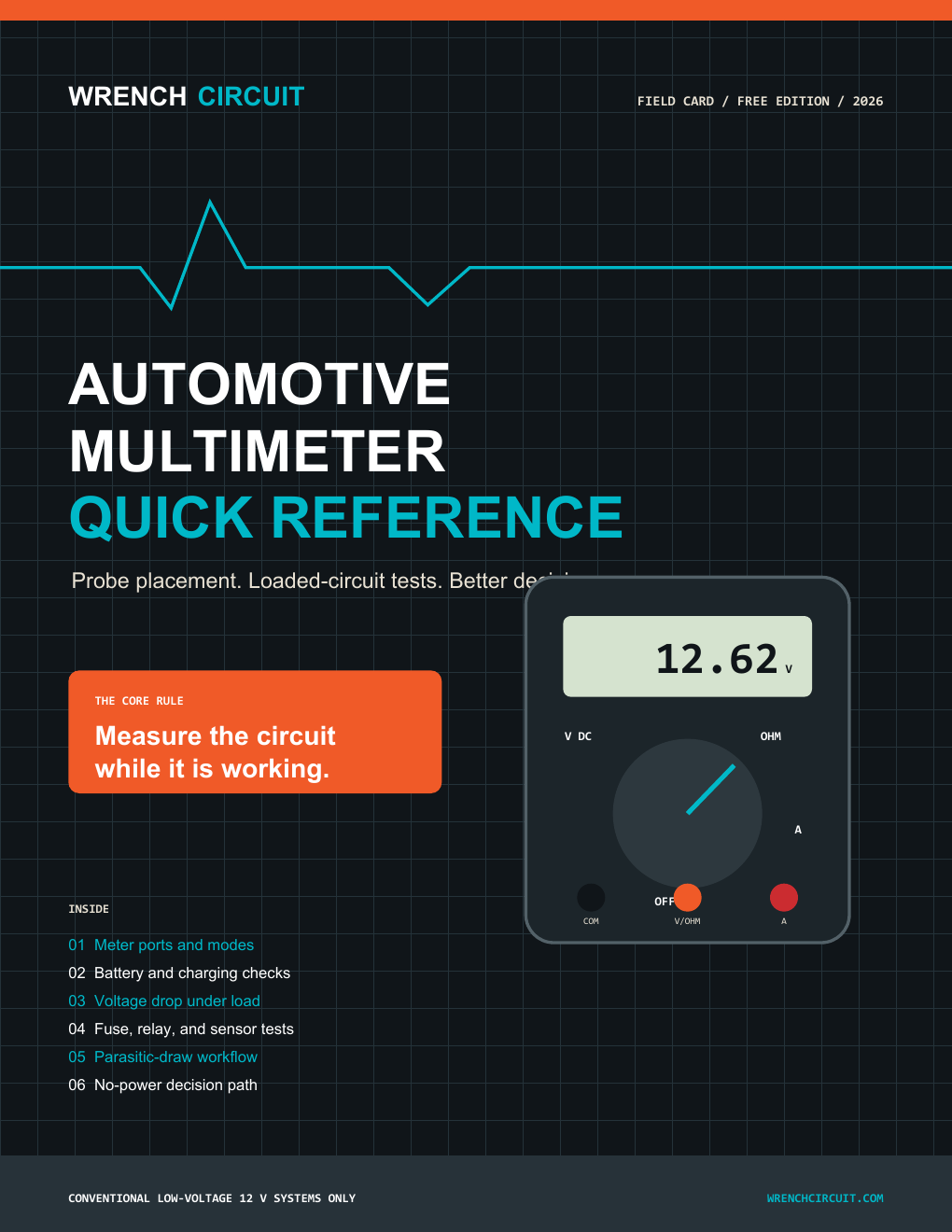

Get the 11-page Automotive Multimeter Quick Reference: port setup, loaded-circuit tests, voltage drop, fuse and relay checks, sensor basics, key-off draw, and a no-power decision path.
New digital guide

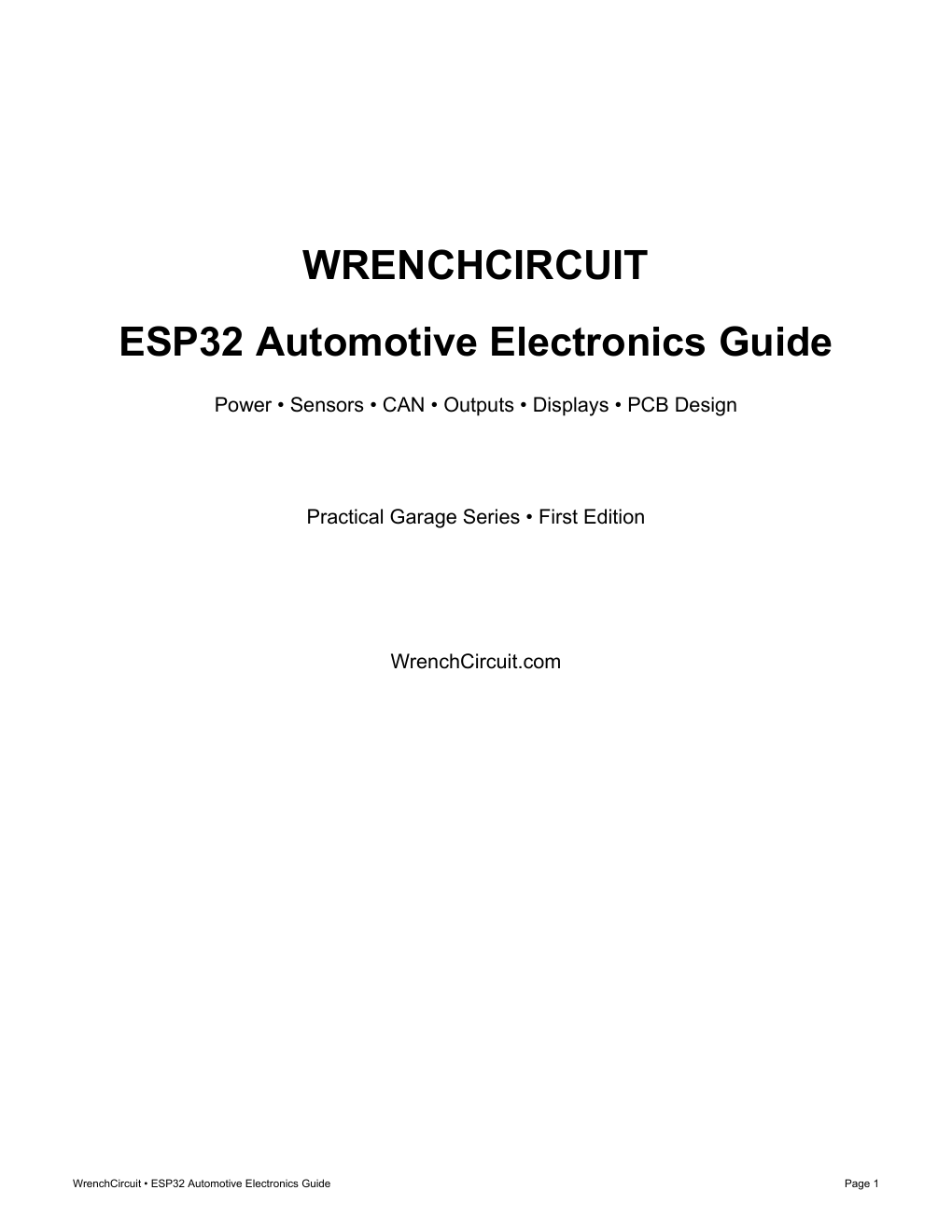

The Practical Garage Series now includes a focused hardware guide for protected ESP32 automotive electronics projects.
Thirteen practical pages covering vehicle power protection, 3.3 V interfaces, sensors, CAN hardware, output stages, PCB workflow, validation, troubleshooting, and printable release worksheets.
Most electrical mistakes start the same way: a symptom gets mistaken for a diagnosis.
Test under the conditions that produce the fault. Loaded circuits tell the truth.

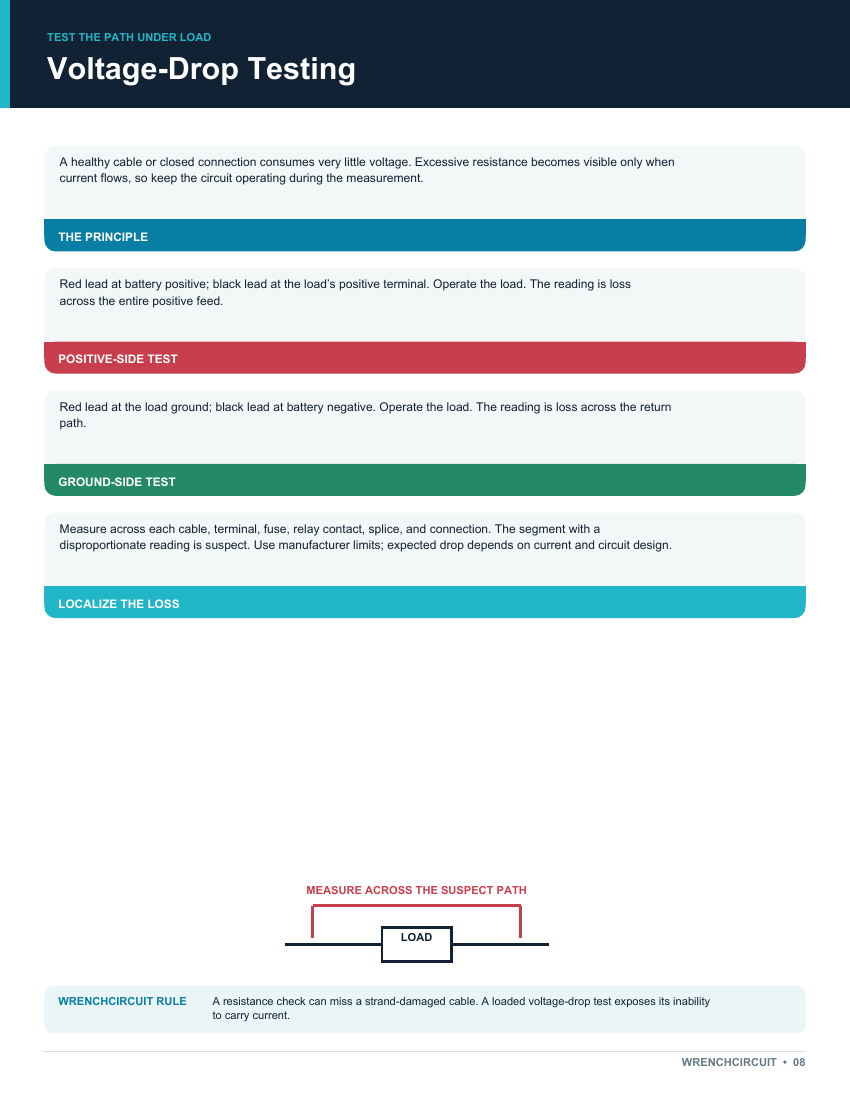

Compare source, path, load, and ground. The unexpected drop points toward the problem.
Use the result to explain the symptom before a part comes off the vehicle.

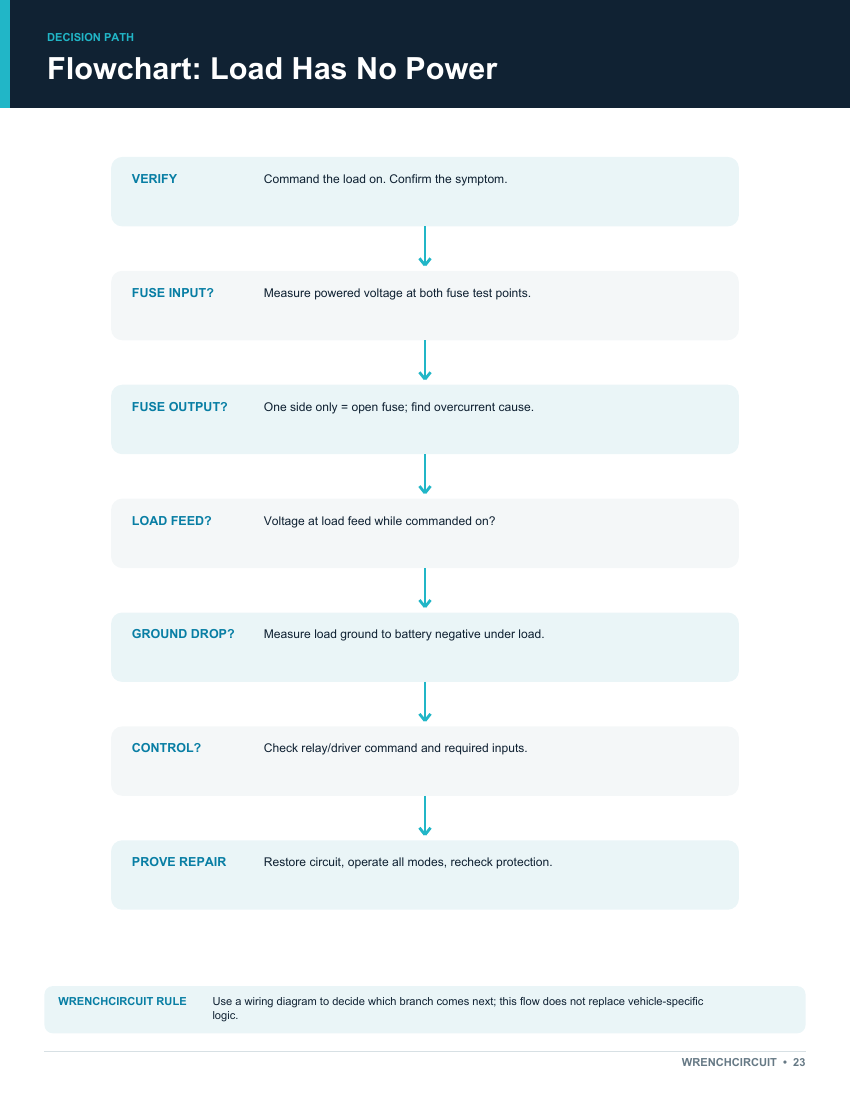

The guide moves from electrical fundamentals into vehicle systems, then finishes with flowcharts, worked cases, quick references, and printable worksheets.
Print it, keep it on a tablet, or pull up the exact page beside the vehicle. The layout is made for fast reference in the middle of a test.
This guide is for
Stop and use qualified help for
WrenchCircuit / first edition
Thirty focused pages, two worked cases, three printable worksheets, and one clear diagnostic method.
By purchasing, you agree to the terms, refund policy, and personal-use license.
Payment is handled on Stripe. The guide is released only after your paid Checkout Session is verified. Your card statement will show WRENCHCIRCUIT.
Need more than a guide?
From ESP32 and Raspberry Pi projects to automotive CAN, sensors, power electronics, and custom controllers, WrenchCircuit can turn a concept, wiring diagram, or prototype into a manufacturing-ready PCB.
Everything important about the guide, delivery, licensing, and purchase is here before you pay.

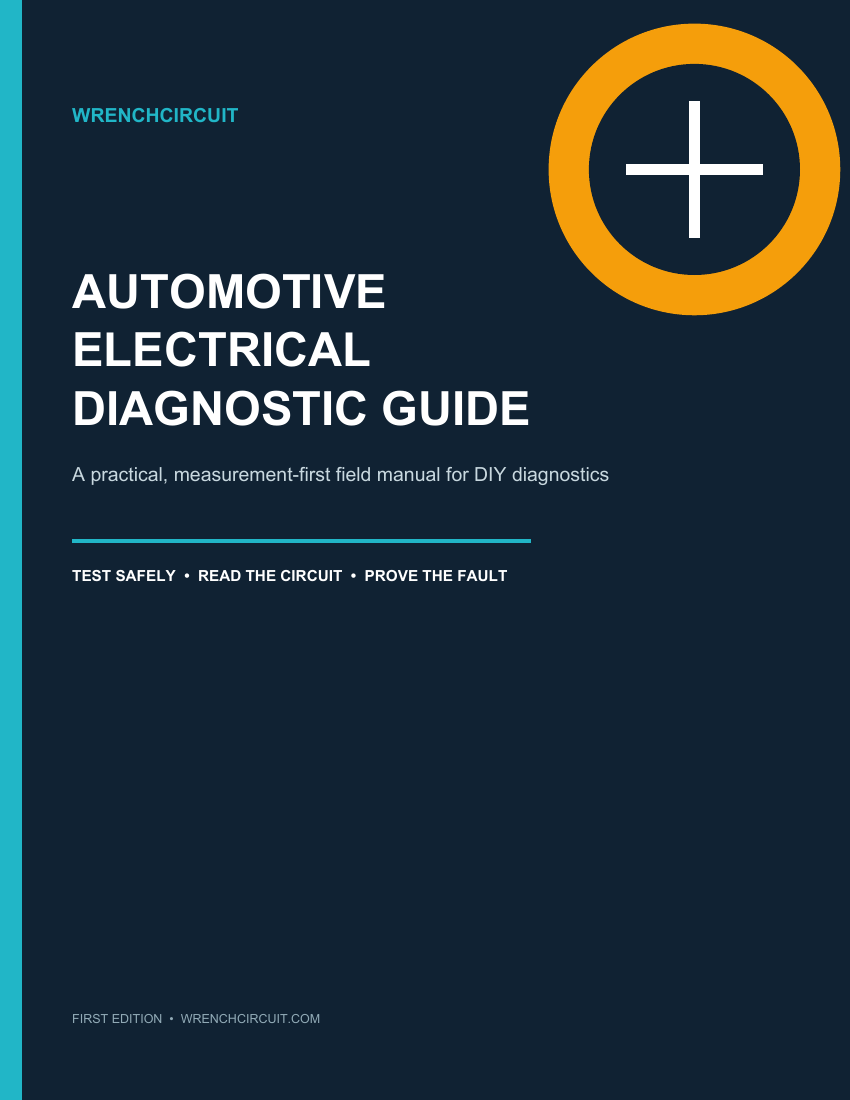

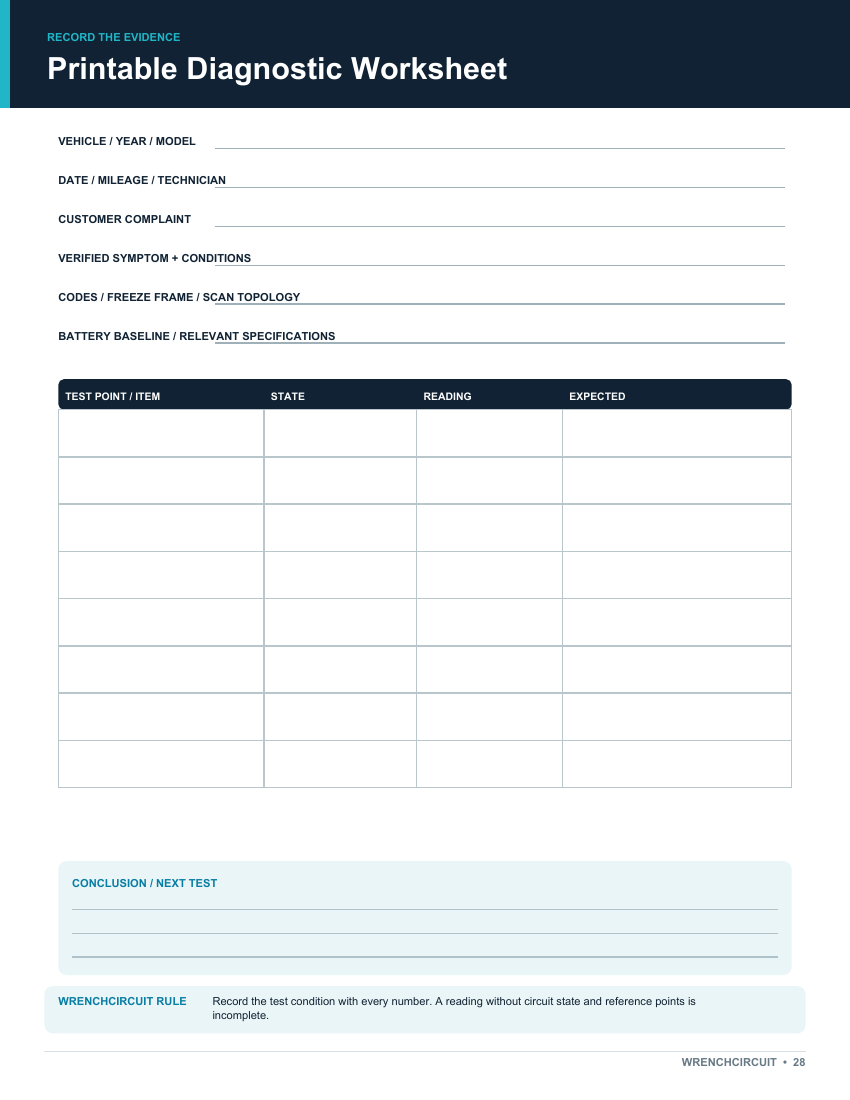

A 30-page downloadable PDF with core electrical concepts, a repeatable diagnostic method, two worked examples, three printable worksheets, quick references, and practical flowcharts.
Careful DIYers, apprentices, and working technicians who want a measurement-first process. It assumes basic hand-tool familiarity, but it explains the electrical testing method from the ground up.
A digital multimeter, vehicle-specific wiring and service information, and ordinary test leads or back-probes. A current clamp is useful for some tests but is not required for the core method.
The principles apply broadly to conventional 12 V automotive circuits, but the guide is not a replacement for vehicle-specific service information. It excludes work on high-voltage hybrid/EV systems, SRS/airbag circuits, and pyrotechnic devices.
After Stripe confirms payment, Checkout returns you to a verified download page. Save that page or download the file promptly so you can keep your own copy.
Yes. Your personal-use license allows you to save the PDF, annotate it, and print copies for your own use. Resale, sharing, uploading, or redistribution is not permitted.
The one-time price is $9.99 USD. Stripe securely handles the payment details; WrenchCircuit does not receive your full card number.
Email Wrenchcircuit@gmail.com with the email used at Checkout, purchase date, and Stripe receipt or Checkout Session reference. Purchase support normally responds within two business days and can verify the transaction without asking for card details.
Purchase support
If delivery fails, keep the email address used at Checkout, the purchase date, and the Stripe receipt or Checkout Session reference. Those details let support verify the payment without asking for card information.
EmailWrenchcircuit@gmail.comResponse within two business days
Read delivery, refund, privacy, terms, and license policies
